LCpro T 全自动便携式光合仪
LCpro-T 便携式光合仪为新一代智能型便携式光相助用测定仪，用以丈量植物叶片的光合速率、蒸腾速率、气孔导度等与植物光相助用相关的参数。仪器应用时间差分IRGA（红外气体剖析）CO2剖析�？楹退す獾餍晨焖傧煊λ羝衅飨该苷闪恳镀饷睠O2浓度及水分的转变情形来考察叶片与植物光相助用相关的参数。通过人工光源、CO2控制单位和温度控制单位可以同时准确调控情形条件，从而测定光强、CO2浓度和温度对植物光合系统的影响。本仪器可在高湿度、多尘等卑劣情形中使用，具有普遍的适用性。

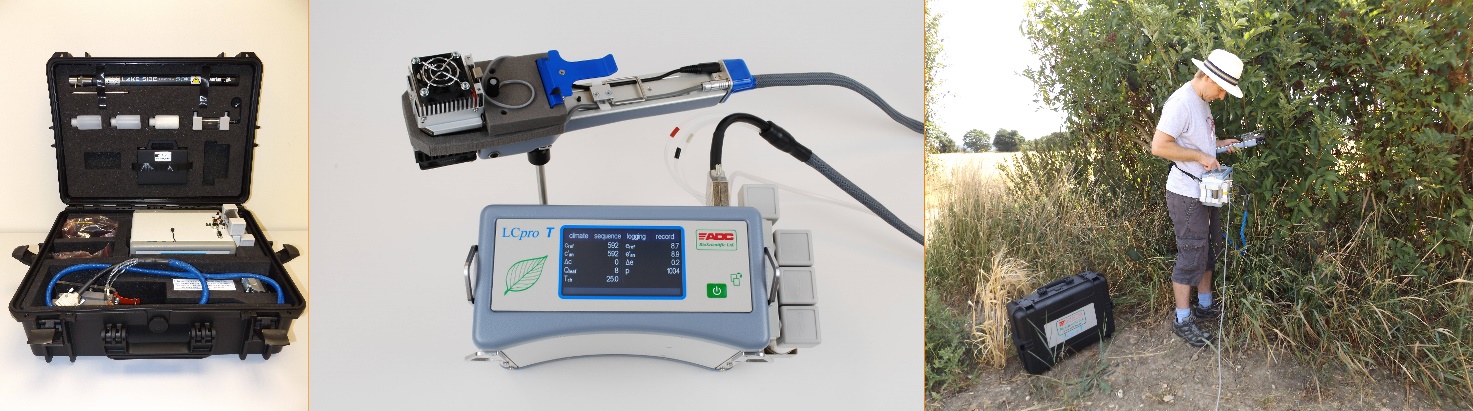

上图左为全套光合仪主机配件及便携箱等，上图中为光合仪主机和手柄，上图右为操作职员举行野外实验
l 植物光合心理研究
l 植物抗胁迫研究
l 碳源碳汇研究
l 植物对全球天气转变的响应及其机理
l 作物新品种筛选
l 配备手持式叶绿素荧光仪，内置了所有通用叶绿素荧光剖析实验程序，包括两套荧光淬灭剖析程序、3套光响应曲线程序、OJIP-test等
l 彩色LCD触摸屏，屏幕和控制单位均接纳膜封手艺，可在高湿和多尘情形下使用
l 白光和RGB（Red Gree Blue）光源任选其一

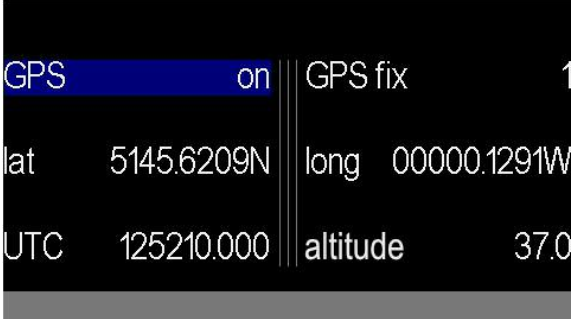

l 内置GPS�？�，准确获取经纬度及海拔数据
l 完全自动、自力控制情形参数（空气湿度，CO2浓度，温度，光照强度）
l 准确丈量CO2和水汽数据
l 便携式设计，体积轻小，仅重4.1Kg
l 人体工程学设计，恬静型肩带，携带操作轻盈

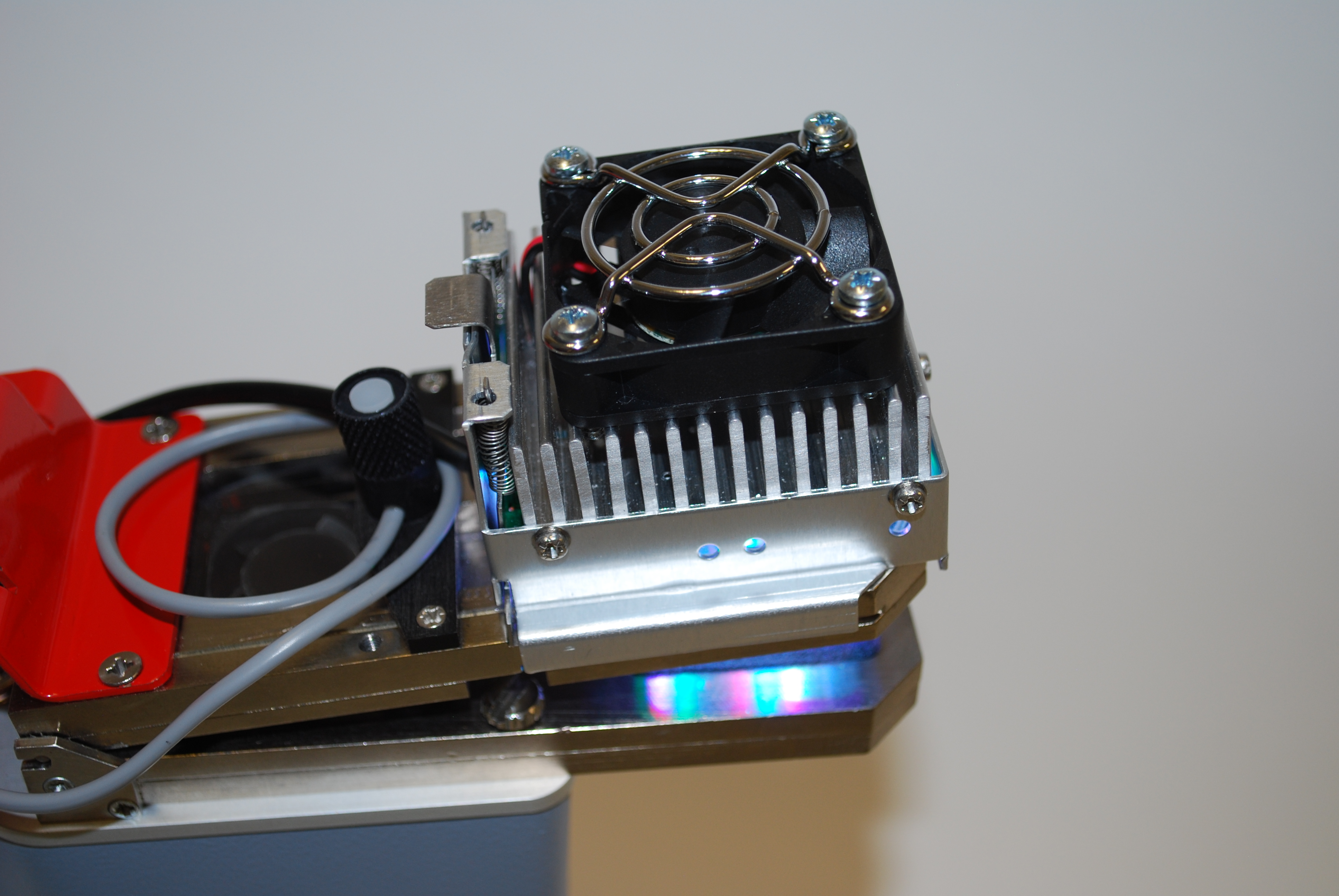

l 手柄内置微型IRGA，有用缩短CO2丈量时间
l 可在卑劣情形下操作，结实耐用
l 可利便交流差别种类的叶室、叶夹
l 叶室质料全心选择，确保CO2及水分丈量精度
l 数据存储量大，使用即插即拔SD卡
l 维护利便，叶室所有区域都很容易清洁
l 接纳低能耗手艺，野外单电池一连事情时间长，可达16小时
l 实时图形显示功效
上图为英国剑桥大学植物科学系M. Davey博士在南极洲对藻类光相助用研究时的事情图片，因LC系列光合仪轻盈小巧，结实耐用，续航长期等特点被列为首选。
l 丈量参数：光合速率、蒸腾速率、胞间CO2浓度、气孔导度、叶片温度、叶室温度、光合有用辐射、气压、GPS数据等，可举行光响应曲线和CO2响应曲线丈量。
l 手持叶绿素荧光仪（选配）
1. 丈量参数包括F0、Ft、Fm、Fm’、QY_Ln、QY_Dn、NPQ、Qp、Rfd、RAR、Area、M0、Sm、PI、ABS/RC等50多个叶绿素荧光参数，及3种给光程序的光响应曲线、3种荧光淬灭曲线、OJIP曲线等
2. 高时间区分率，可达10万次每秒，自动绘出OJIP曲线并给出26个OJIP-test丈量参数包括F0、Fj、Fi、Fm、Fv、Vj、Vi、Fm/F0、Fv/F0、Fv/Fm、M0、Area、Fix Area、Sm、Ss、N、Phi_P0、Psi_0、Phi_E0、Phi-D0、Phi_Pav、PI_Abs、ABS/RC、TR0/RC、ET0/RC、DI0/RC等
l CO2丈量规模：0-3000ppm
l CO2丈量区分率：1ppm
l CO2接纳红外剖析，差脱离路丈量系统，自动置零，自动气压和温度赔偿
l H2O丈量规模：0-75mbar
l H2O丈量区分率：0.1mbar
l PAR丈量规模：0-3000 μmol m-2 s-1，余弦校正
l 叶室温度：-5 - 50℃ 精度：±0.2℃
l 叶片温度：-5 - 50℃
l 空气泵流速：100 - 500ml / min
l CO2控制：由内部CO2供应系统提供，最高达2000ppm
l H2O控制：可高于或低于情形条件
l 温度控制：由微型peltier元件控制，情形温度-10℃到+15℃，所有叶室自动调理
l PAR控制：RGB光源最大2400μmol m-2 s-1，LED白色光源最大2500μmol m-2 s-1
l 可选配多种带有光源的可控温叶室、叶夹
1. 宽叶叶室：长×宽为2.5×2.5cm，适用于阔叶及大大都叶片类型
2. 窄叶叶室：长×宽为5.8×1cm，适用宽度小于1cm的条形叶
3. 针叶叶室：长约69mm，直径47mm，适用于簇状针叶（白光光源）
4. 小型叶叶室：叶室直径为16.5mm，丈量面积2.16cm2
5. 土壤呼吸/小型植物室：丈量丈量土壤呼吸，或者高度低于55mm的整株草本植物光相助用，底面直径为11cm
6. 多功效丈量室：长×宽×高为15×15×7cm，分为上下两部分，上部丈量小型植物光相助用，下部分丈量土壤呼吸
7. 果实丈量室：上下两部分组成，上部透明，下部为金属，可丈量果实最大直径为11cm，最大高度为11.5cm
8. 冠层丈量室：底面直径12.7cm，高12.2cm，适用于地表冠层
9. 荧光仪联用适配器：适用于毗连多种叶绿素荧光仪
上图从左到右依次为宽叶室、窄叶室、LED光源、荧光仪联用叶室、小型叶室
上图从左到右依次为针叶室、果实丈量室、土壤呼吸室、多功效丈量室、冠层室
l 显示：彩色WQVGA LCD触摸屏，480 x 272像素，尺寸95 x 53.9 mm，对角线长109mm
l 数据存储：SD卡，最大兼容32G容量
l 数据输出：Mini-B型USB接口，RS232九针D型接口，最大230400波特率PC通讯
l 供电系统：内置12V 7.5AH锂离子电池，可一连事情至16小时，智能充电器
l 尺寸：主机230×110×170mm，丈量手柄300×80×75mm
l 重量：主机4.1Kg，丈量手柄0.8Kg
l 操作情形：5到45℃

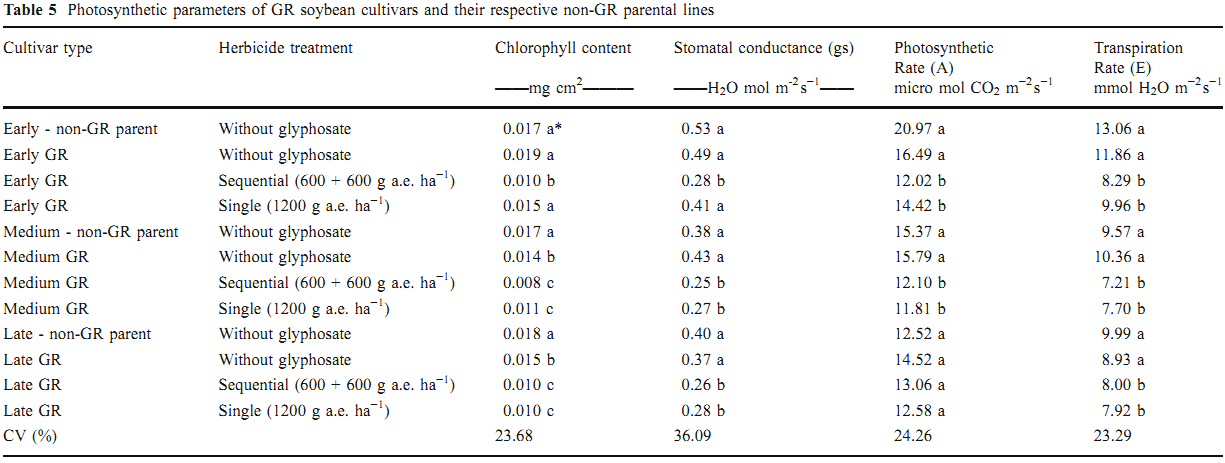

Glyphosate reduces shoot concentrations of mineral nutrients in glyphosate-resistant soybeans, Zobiole L. et al. 2010, Plant and Soil, 328(1): 57-69
本研究对差别类型的抗草甘膦大豆举行草甘膦处置惩罚，发明大豆的各项光合参数，包括叶绿素含量、气孔导度、光合速率和蒸腾速率都有所降低。
Methanol as a signal triggering isoprenoid emissions and photosynthetic performance in Quercus ilex, Seco R. et al. 2011, Acta Physiologiae Plantarum, 33(6): 2413-2422

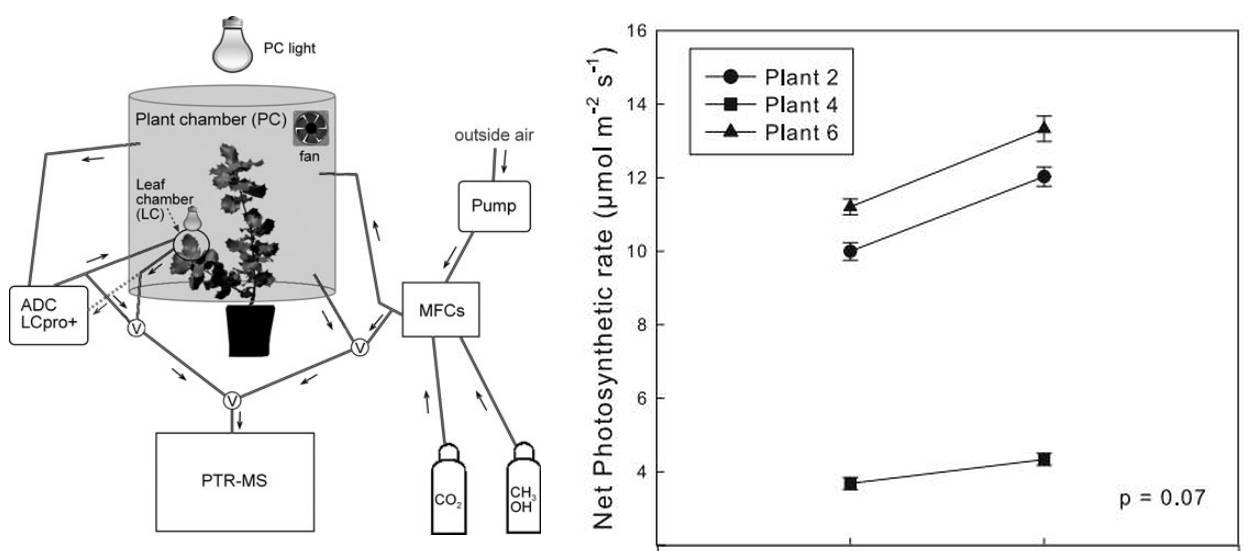

上图左为本研究设计的气室装置，用以研究常青栎（Quercus ilex）在剪去部分叶片（模拟啃食）和加入甲醇（模拟周围其他植物被啃食时释放的信号）时的心理转变，上图右批注两种处置惩罚都提高了植物的净光合速率。
1) 与叶绿素荧光仪组成光相助用与叶绿素荧光丈量系统
2) 与FluorCam联用组成光相助用与叶绿素荧光成像丈量系统
3) 可选配高光谱成像实现从单叶片到复合冠层的光相助用时空转变研究
4) 可选配O2丈量单位
5) 可选配红外热成像单位以剖析气孔导度动态
6) 可选配PSI智能LED光源
7) 可选配FluorPen、SpectraPen、PlantPen等手持式植物（叶片）丈量仪器，周全剖析植物叶片心理生态
8) 可选配ECODRONE®无人机平台搭载高光谱和红外热成像传感器举行时空名堂视察研究
1.Al Kharusi L., Assaha D.V.M, Al-Yahyai R. and Yaish W.M. (2017). Screening of Date Palm (PhoenixdactyliferaL.) Cultivars for Salinity Tolerance. Forests 2017,8, 136; doi:10.3390/f8040136.
2.Alsanius, B.W., Bergstrand, K-J., Hartmann, R., Gharaie, S., Wohanka, W., Dorais, M., Rosberg, A.K. (2017). Ornamental flowers in new light: Artificial lighting shapes the microbial phyllosphere community structure of greenhouse grown sunflowers (Helianthus annuus L.) Scientia Horticulturae, Volume 216, Pages 234–247.
3.Alvarado-Sanabria,O., Garcés-Varón, G. and Restrepo-Díaz, H. (2017). Physiological Response of Rice Seedlings (Oryza sativa L.) Subjected to Different Periods of Two Night Temperatures. Journal of Stress Physiology & Biochemistry, Vol. 13, No. 1, 2017, pp. 35-43. ISSN 1997-0838.
4.Barros, R.E.,Fari R.M.,Tuffi Santos L.D.,Azevedo A.M., Governici J.L. (2017). Physiological Response of Maize and Weeds in Coexistence. Plants Daninha 2017; v35: e017158134.
5.Berenguer, H.D.P.,Alves,A.,Amaral,J.et al. (2017). Differential physiological performance of two Eucalyptus species and one hybrid under different imposed water availability scenarios.Trees https://doi.org/10.1007/s00468-017-1639-y.
6.Borja, D., Gonzalez-Gonzalez Nerea Oliveira Isabel Gonzalez Isabel Canellas Hortensia Sixto (2017). Poplar biomass production in short rotation under irrigation: A case study in the Mediterranean. Biomass and Bioenergy, 107, Dec 2017, 198-206.
7.WF Dutra, YL Guerra, JPC Ramos, PD Fernandes 2018. Introgression of wild alleles into the tetraploid peanut crop to improve water use efficiency, earliness and yield (2018)- journals.plos.org
8.Can Bradyrhizobium strains inoculation reduce water deficit effects on peanuts? (2018). DD Barbosa, SL Brito, PD Fernandes” – World Journal of”, 2018 ØC Springer
9.EG de Sousa, TI da Silva, TJ Dias, DV Ribeiro(2018).Biological Fertilization as an Attenuation of Salinity Water on Beetroot (Beta vulgaris) (2018)- Journal of Agricultural,2018 – ccsenet.org
10.TC Alves, JPAR da Cunha,EM Lemes(2018).Physiological changes in sugarcane in function of air and ground application of fungicide for orange rust control.2018- Bioscience Journal–seer.ufu.br
11.FRM Abreu, B Dedicova, RP Vianello, AC Lanna (2018). Overexpression of a phospholipase (OsPLD¦?1) for drought tolerance in upland rice(Oryza sativa L.)(2018) Protoplasma,2018 ØC Springer
12.B Correia, RD Hancock, J Amaral (2018). Combined drought and heat activates protective responses in Eucalyptus globulus that are not activated when subjected to drought or heat stress alone(2018) Frontiers in plant ”,2018–frontiersin.org
13.C Ma, H Hu, L Jia, C Zhang, F Li (2018). Effects of Brackish Water Salinity on the Soil Salt and Water Movements and the Cotton Seedling Growth Under Film Hole Irrigation. 2018 Sustainable Development of Water”, ØC Springer
14.P Zou, X Lu, C Jing, Y Yuan, Y Lu, C Zhang (2018). Low-Molecular-Weightt Polysaccharides From Pyropia yezoensis Enhance Tolerance of Wheat Seedlings (Triticum aestivum L.) to Salt Stress (2018 Frontiers in plant”, 2018 – frontiersin.org
15.MEB Brito, LAA Soares, WS Soares Filho (2018). Emergence and morphophysiology of Sunki mandarin and other citrus genotypes seedlings under saline stress (2018)- Spanish Journal 2018 – revistas.inia.es
16.LAA Soares, PD Fernandes, GS Lima (2018). Gas exchanges and production of coloured cotton irrigated with saline water at different phenological stages (2018)- Revista CiØ?ncia”, 2018 – SciELO Brasil
17.X Zhang, Y Fan, Y Jia, N Cui, L Zhao (2018). Effect of water deficit on photosynthetic characteristics, yield and water use efficiency in Shiranui citrus under drip irrigation (2018- Transactions of the,2018–ingentaconnect.com
18.JES Ribeiro, AJS Barbosa, SF Lopes (2018). Seasonal variation in gas exchange by plants of Erythroxylum simonis Plowman (2018)- Acta Botanica”, 2018 – SciELO Brasil
19.TB de Oliveira, L de Azevedo Peixoto, PE Teodoro (2018). The number of measurements needed to obtain high reliability for traits related to enzymatic activities and photosynthetic compounds in soybean plants (2018)- PloS one, 2018 – journals.plos.org
20.A Muthalagu,SJ Ankegowda,MF Peeran(2018).Effect of Natural Growth Enhancer on Growth, Physiological and Biochemical Attributes in Black Pepper (Piper nigrum L.)(2018)- researchgate.net
21.W Zhang,XX Chen,YM Liu,DY Liu,YF Du (2018).The role of phosphorus supply in maximizing the leaf area, photosynthetic rate,coordinated to grain yield of summer maize (2018)- Field Crops ”, 2018 ØC Elsevier
22.Carla Barradas, Glória Pinto, Barbara Correia, Cláudia Jesus, Artur Alves. (2019). Impact of Botryosphaeria, Diplodia and Neofusicoccum species on two Eucalyptus species and a hybrid: From pathogenicity to physiological performance. https://doi.org/10.1111/efp.12493
23.Valéria F. de O. Sousa, Caciana C.Costa,Genilson L.Diniz, João B.dos Santos,Marinês P.Bomfim,Kilson P.Lopes.(2019).Growth and gas changes of melon seedlings submitted to water salinity. http://dx.doi.org/10.1590/1807-1929/agriambi.v23n2p90-96
24.T.Chatzistathis,I.E.Papadakis,A.Papaioannou,O.Dichala, A.Giannakoula S.Kostas, P.Tziachris (2019). Genotypic tolerance of two Punica granatum L. cultivars(‘Wonderful’and ‘Acco’) to serpentine stress. https://doi.org/10.1016/j.scienta.2018.12.027
25.Cícero F. de Sousa Alvarenga, Evandro M. da Silva, Reginaldo G. Nobre, Hans R. Gheyi, Geovani S. de Lima, Luderlândio de A. Silva. (2019). Morfofisiologia de aceroleira irrigada com águas salinas sob combinações de doses de nitrogênio e potássio. https://doi.org/10.19084/RCA18215
